Self aligning roller bearing 24030-CC-W33-SKF

150 150 225 225 75 75

Part number : 24030-CC-W33-SKF

SKF

Description

The Self Aligning Roller Bearing, known as 24030-CC-W33-SKF SKF, has an inner diameter of 150 mm, an outer diameter of 225 mm and a thickness of 75 mm.

N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

Description

The Self Aligning Roller Bearing, known as 24030-CC-W33-SKF SKF, has an inner diameter of 150 mm, an outer diameter of 225 mm and a thickness of 75 mm.

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

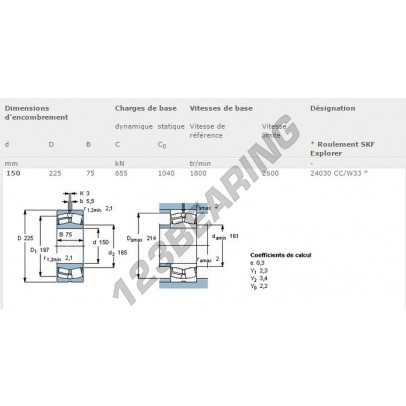

TECHNICAL DATA
  • BRAND
  • N° EAN13
    7316576612893
  • INSIDE DIAMETER
    150  MM
  • OUTSIDE DIAMETER
    225  MM
  • THICKNESS
    75  MM
  • LIMITING SPEED
    1800  RPM
  • DYNAMIC LOAD
    655000  KN
  • STATIC LOAD
    1040000  KN
  • PACKAGING
    1
Description

The Self Aligning Roller Bearing, known as 24030-CC-W33-SKF SKF, has an inner diameter of 150 mm, an outer diameter of 225 mm and a thickness of 75 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
