Self aligning roller bearing 23156RRK-AH3156-JTEKT

260 260 460 460 146 146

Part number : 23156RRK-AH3156-JTEKT

JTEKT

Description

The Self Aligning Roller Bearing, known as 23156RRK-AH3156-JTEKT JTEKT, has an inner diameter of 260 mm, an outer diameter of 460 mm and a thickness of 146 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

Description

The Self Aligning Roller Bearing, known as 23156RRK-AH3156-JTEKT JTEKT, has an inner diameter of 260 mm, an outer diameter of 460 mm and a thickness of 146 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

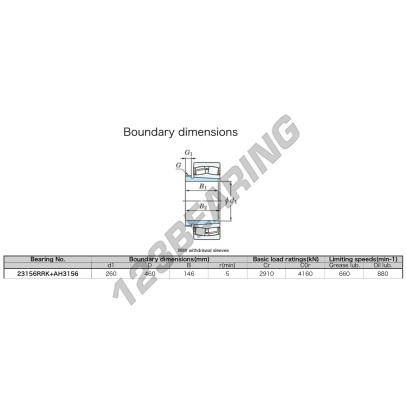

TECHNICAL DATA
  • INSIDE DIAMETER
    260  MM
  • OUTSIDE DIAMETER
    460  MM
  • THICKNESS
    146  MM
  • LIMITING SPEED
    660  RPM
  • BRAND
  • DYNAMIC LOAD
    2910  KN
  • STATIC LOAD
    4160  KN
  • PACKAGING
    1
  • N° EAN13
    3616060794536
Description

The Self Aligning Roller Bearing, known as 23156RRK-AH3156-JTEKT JTEKT, has an inner diameter of 260 mm, an outer diameter of 460 mm and a thickness of 146 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
