Self aligning roller bearing 23128-CC-K-W33-SKF

140 140 225 225 68 68

Part number : 23128-CC-K-W33-SKF

SKF

Description

The Self Aligning Roller Bearing, known as 23128-CC-K-W33-SKF SKF, has an inner diameter of 140 mm, an outer diameter of 225 mm and a thickness of 68 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

Description

The Self Aligning Roller Bearing, known as 23128-CC-K-W33-SKF SKF, has an inner diameter of 140 mm, an outer diameter of 225 mm and a thickness of 68 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

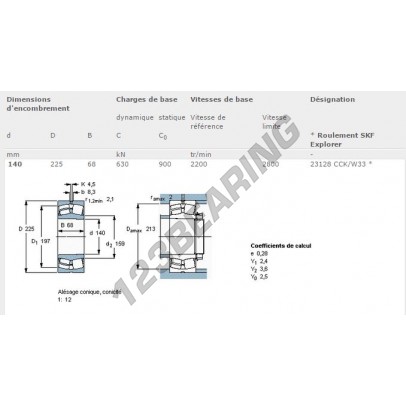

TECHNICAL DATA
  • INSIDE DIAMETER
    140  MM
  • OUTSIDE DIAMETER
    225  MM
  • THICKNESS
    68  MM
  • LIMITING SPEED
    2200  RPM
  • BRAND
  • DYNAMIC LOAD
    630000  KN
  • STATIC LOAD
    900000  KN
  • PACKAGING
    1
  • N° EAN13
    7316576656255
Description

The Self Aligning Roller Bearing, known as 23128-CC-K-W33-SKF SKF, has an inner diameter of 140 mm, an outer diameter of 225 mm and a thickness of 68 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
