Self aligning roller bearing 22314-EK-SKF

70 70 150 150 51 51

Part number : 22314-EK-SKF

SKF

Description

The Self Aligning Roller Bearing, known as 22314-EK-SKF SKF, has an inner diameter of 70 mm, an outer diameter of 150 mm and a thickness of 51 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

Description

The Self Aligning Roller Bearing, known as 22314-EK-SKF SKF, has an inner diameter of 70 mm, an outer diameter of 150 mm and a thickness of 51 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

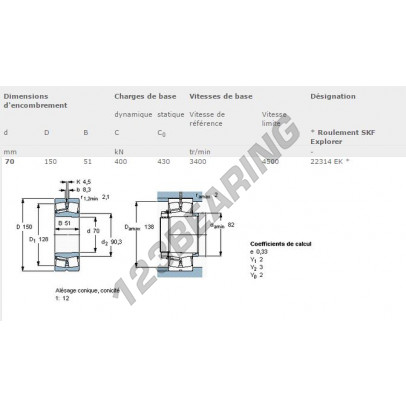

TECHNICAL DATA
  • INSIDE DIAMETER
    70  MM
  • OUTSIDE DIAMETER
    150  MM
  • THICKNESS
    51  MM
  • LIMITING SPEED
    3400  RPM
  • BRAND
  • WEIGHT
    4375  G
  • DYNAMIC LOAD
    400000  KN
  • STATIC LOAD
    430000  KN
  • PACKAGING
    1
  • N° EAN13
    7316570036817
Description

The Self Aligning Roller Bearing, known as 22314-EK-SKF SKF, has an inner diameter of 70 mm, an outer diameter of 150 mm and a thickness of 51 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
