2309-K-TVH-C3-FAG
2309-K-TVH-C3-FAG
2309-K-TVH-C3-FAG
FAG

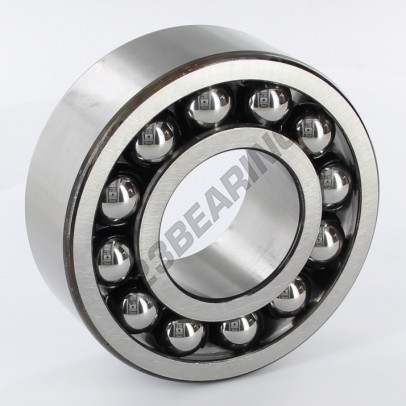

Self aligning ball bearing 2309-K-TVH-C3-FAG

45 45 100 100 36 36

Part number : 2309-K-TVH-C3-FAG

FAG
Trustpilot

Trustpilot

Description

The Self Aligning Ball Bearing, known as 2309-K-TVH-C3-FAG FAG, has an inner diameter of 45 mm, an outer diameter of 100 mm and a thickness of 36 mm.

See data sheet
Your price: £94.80 INCL. VAT

  3 parts in stock

logo_delivery Delivered tomorrow. order within
Quantity Price
10 - 24 £88.48 INCL. VAT
25 - 49 £82.15 INCL. VAT
50 - 99 £75.83 INCL. VAT
100 - inf £69.50 INCL. VAT
For more information, please request a quote

Added

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

Trustpilot

Description

The Self Aligning Ball Bearing, known as 2309-K-TVH-C3-FAG FAG, has an inner diameter of 45 mm, an outer diameter of 100 mm and a thickness of 36 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

Trustpilot
CUSTOMERS ALSO BOUGHT
Housed bearing - 2 bolts - SNH511-609-HBC GEN

HOUSED BEARING - 2 BOLTS SNH511-609-HBC

£51.79 INCL. VAT


7 parts in stock

Sleeves - H2309 GEN

SLEEVES H2309

40 40 65 65 50 50

£6.31 INCL. VAT


15 parts in stock

TECHNICAL DATA
  • INSIDE DIAMETER
    45  MM
  • OUTSIDE DIAMETER
    100  MM
  • THICKNESS
    36  MM
  • BRAND
    FAG
  • WEIGHT
    1188  G
  • DYNAMIC LOAD
    55  KN
  • STATIC LOAD
    16.6  KN
  • STANDARD
    No standard
  • PACKAGING
    1
  • N° EAN13
    4012801191692
Description

The Self Aligning Ball Bearing, known as 2309-K-TVH-C3-FAG FAG, has an inner diameter of 45 mm, an outer diameter of 100 mm and a thickness of 36 mm.

EXPERT ADVICE


What is a self aligning bearing?


 A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment.   These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings.   Attention, there are 2 important variants:   • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.   The tapered bore is indicated by the letter "K" in the reference.


What does the letter "K" mean in the reference?


 The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
