Self aligning ball bearing 2309-2RS-JTEKT

45 45 100 100 36 36

Part number : 2309-2RS-JTEKT

JTEKT

Description

The Self Aligning Ball Bearing, known as 2309-2RS-JTEKT JTEKT, has an inner diameter of 45 mm, an outer diameter of 100 mm and a thickness of 36 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

Description

The Self Aligning Ball Bearing, known as 2309-2RS-JTEKT JTEKT, has an inner diameter of 45 mm, an outer diameter of 100 mm and a thickness of 36 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

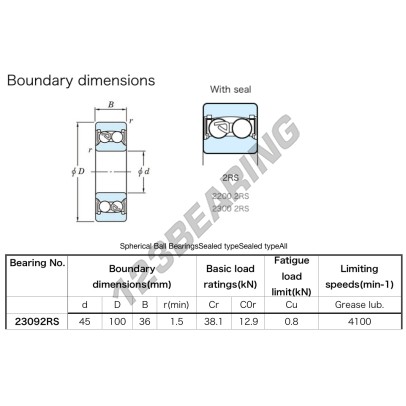

TECHNICAL DATA
  • BRAND
  • N° EAN13
    4549250103032
  • INSIDE DIAMETER
    45  MM
  • OUTSIDE DIAMETER
    100  MM
  • THICKNESS
    36  MM
  • LIMITING SPEED
    4100  RPM
  • DYNAMIC LOAD
    38.1  KN
  • STATIC LOAD
    12.9  KN
  • PACKAGING
    1
Description

The Self Aligning Ball Bearing, known as 2309-2RS-JTEKT JTEKT, has an inner diameter of 45 mm, an outer diameter of 100 mm and a thickness of 36 mm.

EXPERT ADVICE

What is a self aligning bearing?

A spherical bearing, or swinging bearing is a bearing that is able to accept that the spindle is slightly out of alignment. These bearings are regularly located in grinders or agricultural machines, regularly placed in "cast iron SN" bearings, with a shim washer and seals specific to these bearings. Attention, there are 2 important variants: • The cylindrical bore bearing, which will be mounted directly on the shaft, in force
• The tapered bore bearing, mounted with a sleeve, on an axis smaller than the bore of basis of turnover.
The tapered bore is indicated by the letter "K" in the reference.

What does the letter "K" mean in the reference?

The letter K means that the bearing has a tapered bore. It should therefore almost always be mounted with a conical sleeve. Attention, this bearing is generally mounted on an axis of 5mm less than the dimension indicated for the bearing.
