PAP bush PAP0305-P14-KS

3 3 4.5 4.5 5 5

Part number : PAP0305-P14-KS

KS

Description

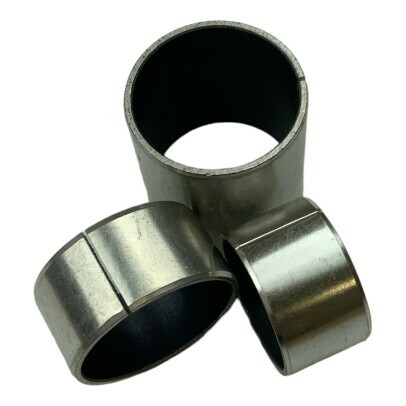

The Pap Bush known by the reference PAP0305-P14-KS KS has an inside diameter of 3 mm, an outside diameter of 4.5 mm and a length of 5 mm.

See data sheet
N/A

  8 to 10 days

product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

Description

The Pap Bush known by the reference PAP0305-P14-KS KS has an inside diameter of 3 mm, an outside diameter of 4.5 mm and a length of 5 mm.

See data sheet
product_sheet product_sheet product_sheet
product_sheet_padlockSecure payment

Need help or advice?

02038.087.274

TECHNICAL DATA
  • BRAND
  • N° EAN13
    3663952276557
  • INSIDE DIAMETER
    3  MM
  • OUTSIDE DIAMETER
    4.5  MM
  • THICKNESS
    5  MM
  • TYPE
    PAP
  • PACKAGING
    1
Description

The Pap Bush known by the reference PAP0305-P14-KS KS has an inside diameter of 3 mm, an outside diameter of 4.5 mm and a length of 5 mm.

EXPERT ADVICE

What do suffixes mean ...?

P10, P20, P11 and P14 ?

This is the type of coating applied on this smooth ring:
P10 = self-lubricated PTFE (Teflon) coating, will not require maintenance
P20 = PTFE (Teflon) self-lubricated honeycomb coating, with a grease hole, which will allow maintenance and lubrication of the ring
P11 = self lubricated PTFE (Teflon) coating, which will not require maintenance. High thermal and antimagnetic conductivity
P14 = Self lubricated PTFE (Teflon) coating, which will not require maintenance. Does not contain lead and is therefore a more ecological product.

What is the purpose of a smooth ring?

A smooth ring has a similar use to bronze rings , in generally smaller thicknesses than the ring bronze. > It will serve as a guide in rotation of an axis with respect to a fixed reference, where a minimum size is necessary.
The wear on the bushings is slow and takes up little time.
Some versions are maintenance-free, and can run dry.
Operating temperature ranges are very wide: -200 ° C to + 280 ° C.
